Needle Valve – DBB

Features

Standard non-rotating free swivel stem tip.
Upper stem thread lubricant is isolated from system fluid.
Non-rotating lower stem avoid galling damage to the seat and tip, as well as reduces the total friction area between the packing and lower stem.
Back seating design provides secondary stem sealing and prevents stem blowout.
Adjustable gland flange allows packing adjustment.
Stem packing below thread design prevent media contamination and thread lubrication washout.
Pressure rating upto 10,000 psig (690 Bar)
Temperature rating are as follows:
PTFE: -65°F to 450°F (-54°C to 232°C)
Graphite: -65°F to 1200°F (-54°C to 649°C)

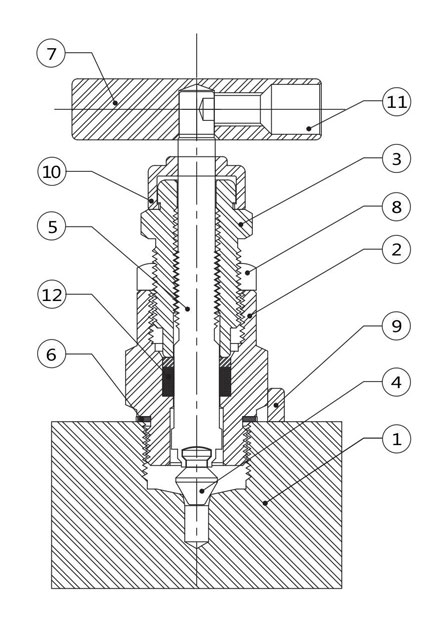

Material of construction:

No.	Component	Material of Constructions
No.	Component	SS316 SS316L	Carbon steel A105	Duplex	Inconel 625
1.	Body	SS316 SS316L	Carbon steel A105	Duplex	Inconel 625
2.	Lower Bonnet	SS316 SS316L	Carbon steel A105	Duplex	Inconel 625
3.	Packing Bolt	SS316 SS316L	Carbon steel A105	Duplex	Inconel 625
4.	Stem Tip	SS316 SS316L	SS316 SS316L	Duplex	Inconel 625
5.	Stem	SS316 SS316L	SS316 SS316L	Duplex	Inconel 625
6.	Washer	SS316 SS316L	SS316 SS316L	Duplex	Inconel 625
7.	Handle		SS316
8.	Lock Nut		SS316
9.	Locking pin		SS316
10.	Cap		PVC
11.	Screw		SS 316
12.	Packing		PTFE Graphite

Compact and robust design combining two ball valves and a bleed valve into a single assembly. Ideal for critical isolation in high-pressure systems with minimal leakage risk.

Engineered for precision control, this version integrates dual needle valves with a bleed port—perfect for low to medium pressure applications requiring fine throttling and isolation.

Designed with a 9.5mm bore, this series provides reliable double block and bleed functionality in a compact form factor. Ideal for instrumentation lines and compact piping systems.

A high-performance variant for heavy-duty industrial use, offering enhanced flow capacity and robust isolation. Built to perform under demanding pressure and temperature conditions.

Needle Valve – Specification

YDB Valves is the topmost leading needle valve manufacturer and has been delivering outstanding products to a wide range of customers. We highly focus on delivering high-quality products to serve different applications tailored to meet the requirements. Our needle valves are accurate and make sure that it delivers the required output incessantly. Understand the important features of Needle Valves and also get an idea of the different materials we use for the construction of needle valves.

We introduce ourselves as an ISO 9001:2015 certified high quality valve manufacturer in Vasai, needle valve manufacturers at best price in India
