Retrievable Type Chemical Injection Quill

High-pressure retrievable injectors

High-pressure retrievable injectors, also known as high-pressure access fittings, are available with three different styles, connection types and lengths

Styles: Inline injector, 90 deg injector, quill
Connections to process pipe: 2″NPS flange, weld, threaded connections
Side tee connections 1/4″ to 1″ NPS flange, weld or threaded connection for mating to injection/sampling line
Up to 3/4″NPS flanged connection for quills, inline nozzles, 90° nozzles
Length up to 42″ (107cm) to fit a wide range of pipeline sizes
Temperature range: 0 F (-18°C) to 400°F (204°C)
Materials: carbon steel, stainless steel, Duplex SS, Super Duplex SS, Inconel 625 and 825. Code compliant: ASME, code B31.3, NACE-MR0175

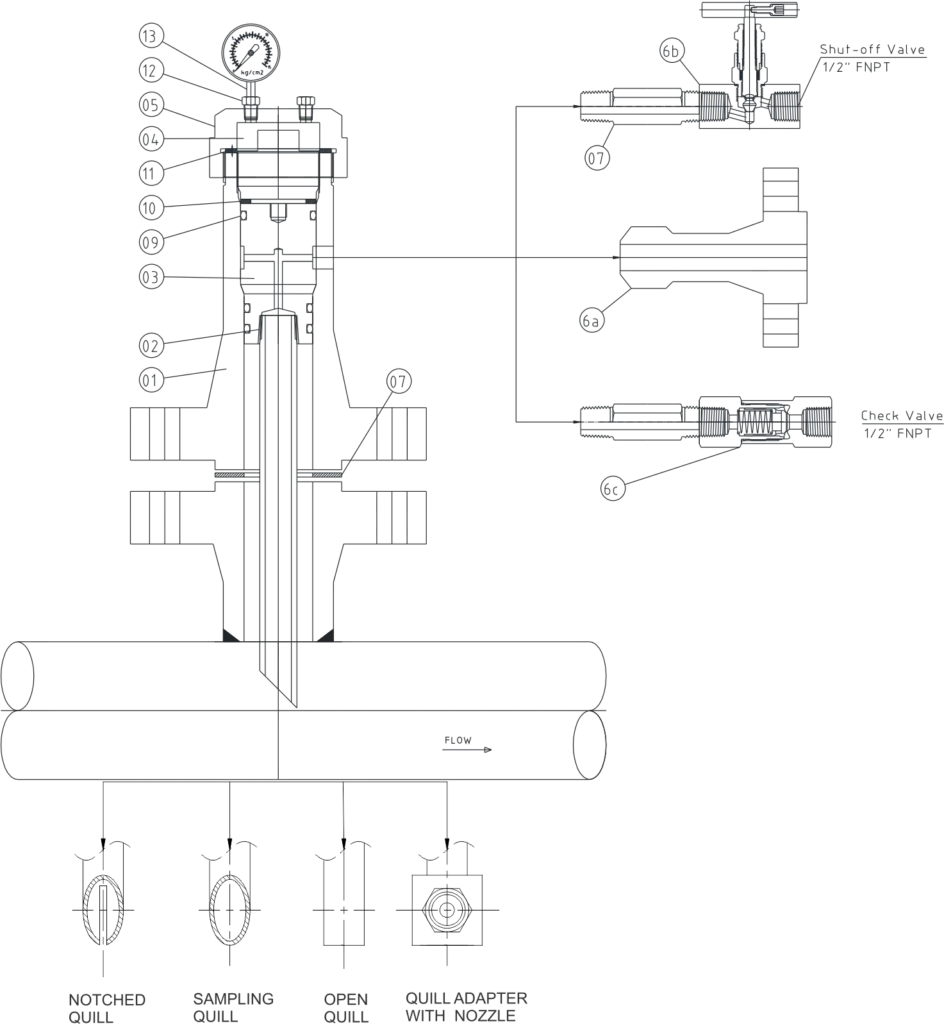

P.No.	ITEM NAME
01	Access Fittings
02	Quill
03	Stem
04	Body Seal
05	Protective Cover
6a	Inlet Flange
6b	Inlet 1/2″ shut off valve
6c	Inlet 1/2″ Check valve
07	Fluorine rubber gasket
08	O-ring Inner #1
19	O-ring Inner #2
10	Gasket
10	Gasket
12	1/8 NPT plug

Injection and Sampling systems are fundamental to corrosion control and process control programs. they are applicable to a large variety of processes in the petroleum, chemical, and water treatment industries, injection systems are used to inject a wide range of chemicals into processes. such chemicals include biocides, demulsifiers, corrosin inhibitors, oxygen scavengers, glycol and mono-ethylene glycol, dewaxers, methanol, odorizers, and product additives.
Injection systems may be as simple as using an open-ended tube that allows for even distribution of the injected chemical or as complex as using a head with a cap and core to obtain precise atomization of the chemical.
Sampling systems are used to take samples of the process fluid or medium. such samples are then analysed in the laboratory for inhibitor concentration levels, the presence of metal ions, oxygen levels, forming compounds, and a wide range or process parameters.
